ND Solar Coupling Plates

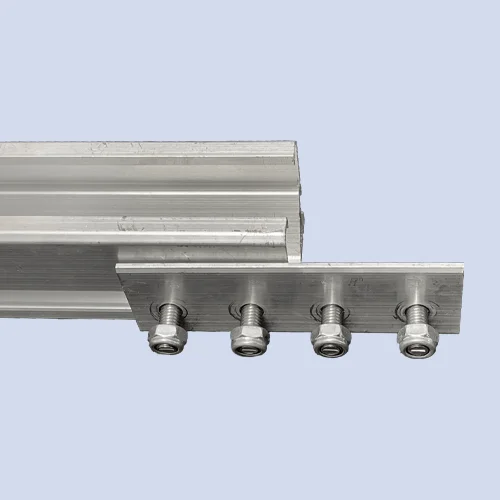

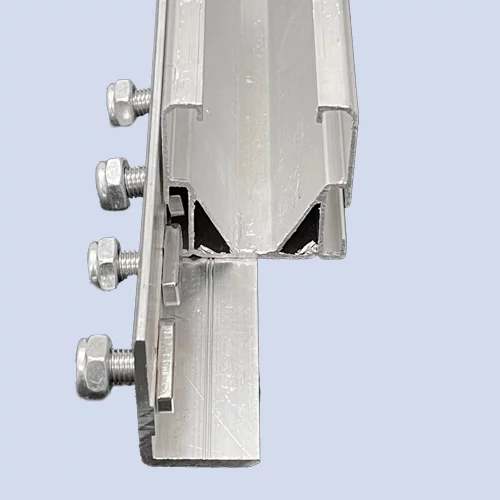

The ND Solar Coupling Plate connects two ND Solar Mounting Profiles together. The coupling plate is supplied with 4 pre-assembled hammerhead bolts.

Material
aluminium
Weight
approx. 0.154 kg
Packaging

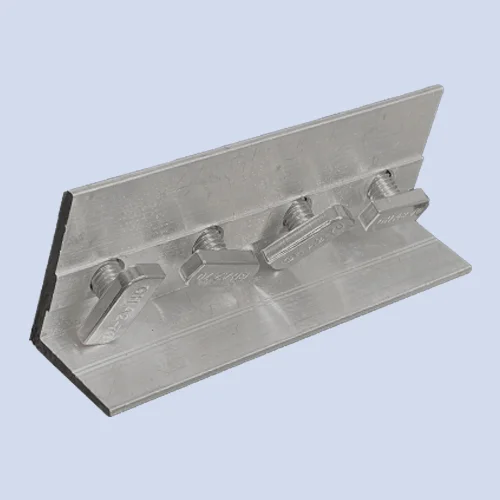

per piece, as an L-angle with 4 pre-assembled hammerhead bolts.

Long product description

The ND Solar Coupling Plate connects two ND Solar Mounting Profiles together. The coupling plate is supplied with 4 pre-assembled hammerhead bolts.

First, 2 out of the 4 hammerhead bolts need to be inserted into the first profile. Then, these 2 bolts should be tightened with a torque of 15 Nm. Next, the second profile should be installed. Finally, the remaining 2 hammerhead bolts are inserted and tightened.

It is important to ensure that expansion and expansion joints marked in the assembly and module layout plan are absolutely not connected to a coupling plate.
