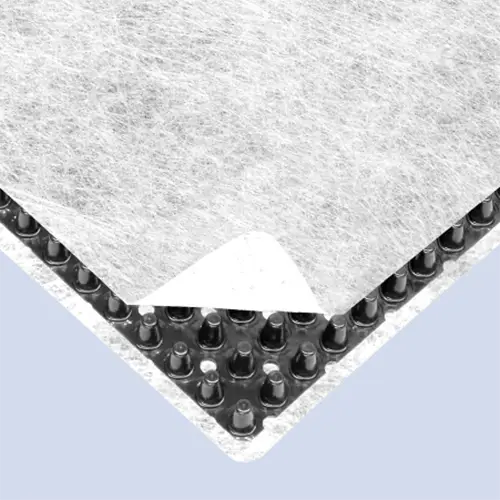

ND 200sv Drainage System

High-performance, CE-marked drainage system with a perforated core for podium decks on an inverted roof. The drainage system prevents the build-up of hydrostatic pressure on the waterproofing membrane. The vapour-permeable geotextile on the back protects the XPS insulation from mechanical loads and ensures that vapour is able to evaporate freely from the XPS insulation.

Dimensions (L x W)
approx. 32 m x 1.25 m
Packaging
approx. 40 m², roll
Weight
approx. 990 g/m²
Construction height
approx. 13 mm
Compressive strength
approx. 700 kPa
Material dimpled sheet
recycled, high impact polystyrene (HIPS)
Material filter geotextile
Polypropylene (PP) and Polyethylene (PE)
Material vapour-permeable geotextile
Polypropylene (PP) and Polyethylene (PE)
Perforations/m²
approx. 1,540, Ø 6.3 mm
Water reservoir
n/a
Drainage capacity i = 1 (20 kPa)
approx. 5.29 l/(s.m)
Drainage capacity 2 % fall (20 kPa)
approx. 0.60 l/(s.m)
CE
hEN 13252

Long product description

High-performance, CE-marked drainage system with a perforated core for podium decks on an inverted roof. The drainage system prevents the build-up of hydrostatic pressure on the waterproofing membrane. The vapour-permeable geotextile on the back protects the XPS insulation from mechanical loads and ensures that vapour is able to evaporate freely from the XPS insulation.

Easy to transport

The rolls can be moved by just 1 person to the right spot (by hand truck or by simply rolling). The rolls are immediately ready to install.

Easy to unroll

We supply our ND Drainage Systems as rolls. This means, that all three required system layers – protection layer, drainage layer and filter layer – are unrolled at once in one motion.

Fast to install

Unroll, overlap and done. Since all layers are glued together, delays due to wind effects or wrongly positioned layers are nearly impossible. It can’t be quicker.

Rock & roll
The ND Drainage Systems are easy and quick to install because the filter, drainage and (sliding and) protection layer are glued together. The ND Drainage Systems are supplied as rolls, making them easy to handle and quick to unroll.

Glued, not thermally bonded
The filter, protective (and slip) layers are glued and not thermally bonded to the core of the dimpled core. This prevents damage to the mechanical and hydraulic properties of the geotextiles and the entire drainage system. It also prevents that geotextiles form being pressed between the dimples, which could jeopardize good drainage. The overlap of the filter geotextile ensures optimal filtration.

Request consultation or quotation

Curious about the possibilities of our innovative Nophadrain solutions for your project? Don’t wait any longer and request an quotation here!
